| Parameter | Specifications & Standards |
|---|---|
| Product Type | Automatic Rotating Table Socket |
| Dimensions & Cut-out size | 445*120*105 mm; 435*110*105 mm |
| Material & Finish | Aluminium Alloy + ABS; Brushed Silver / Brushed Black / Brushed Gold / Brushed Gunmetal |
| Input Voltage | AC 250V~, 13A, 50/60Hz |
| Available Sockets & Module | UK / US / AU / Schuko / FR / CN / IN / TH / ZA / BR / IT / Universal Power Sockets; HDMI, VGA, USB3.0, CAT6 RJ45, RJ11, 3.5mm Audio, ect. |
| Certifications | CCC, CE, UL, ETL, SAA, VDE, and DEKRA Certified |

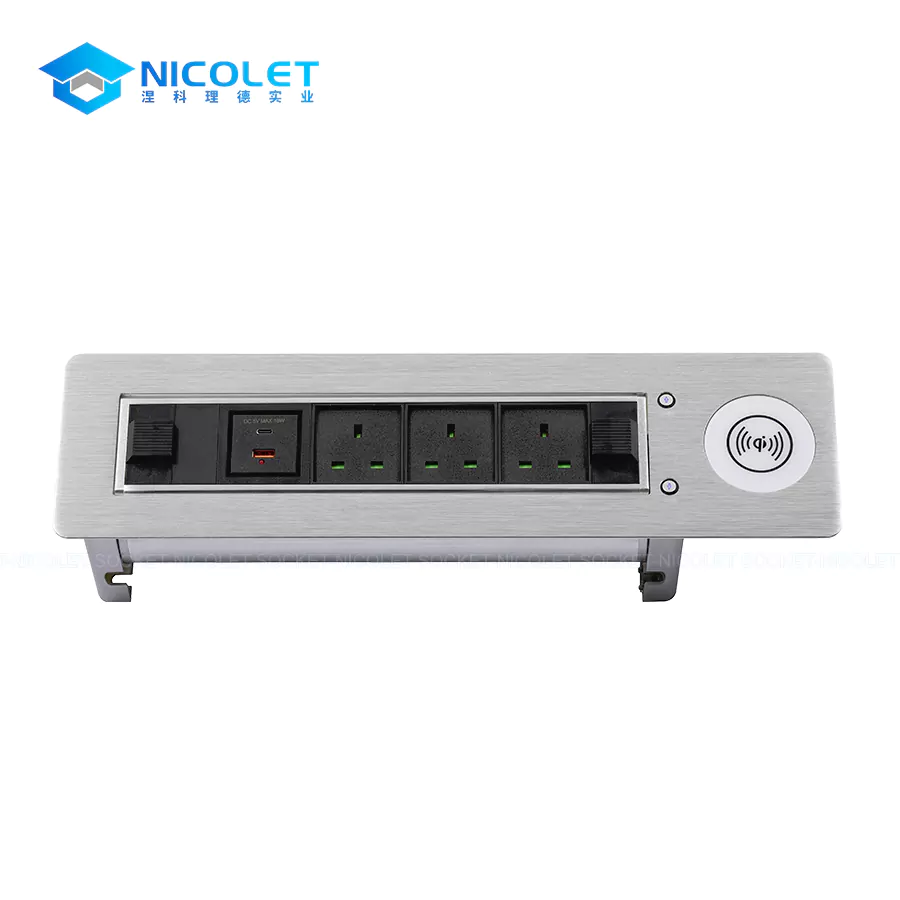

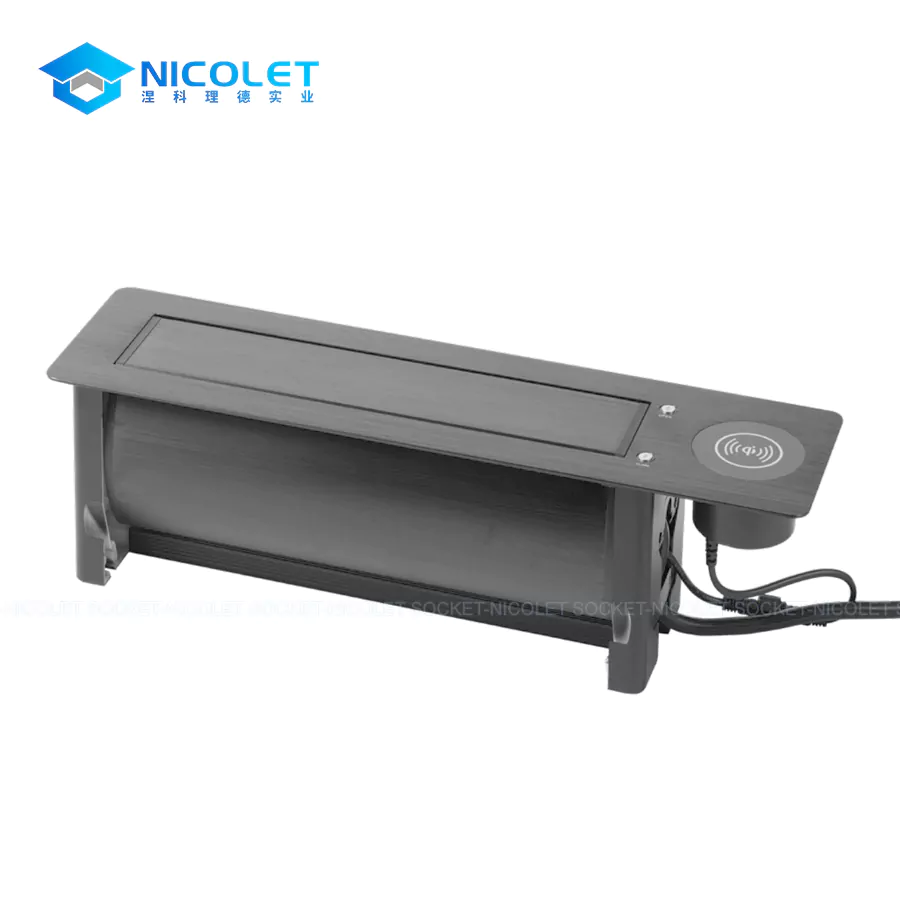

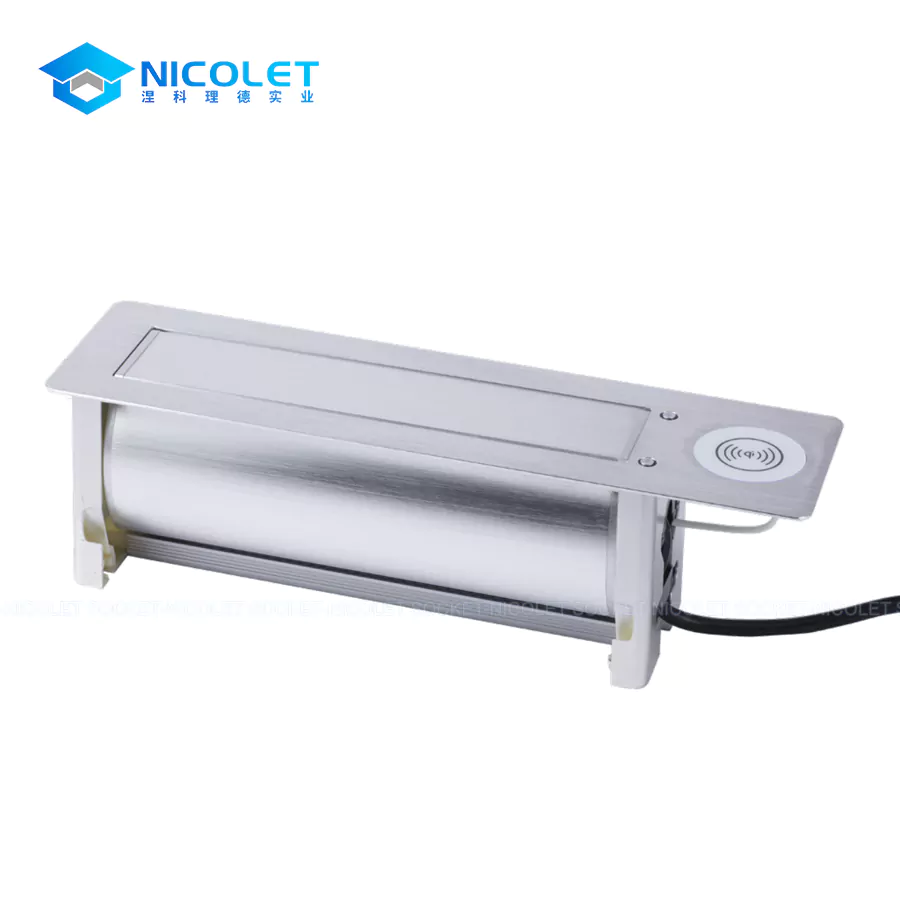

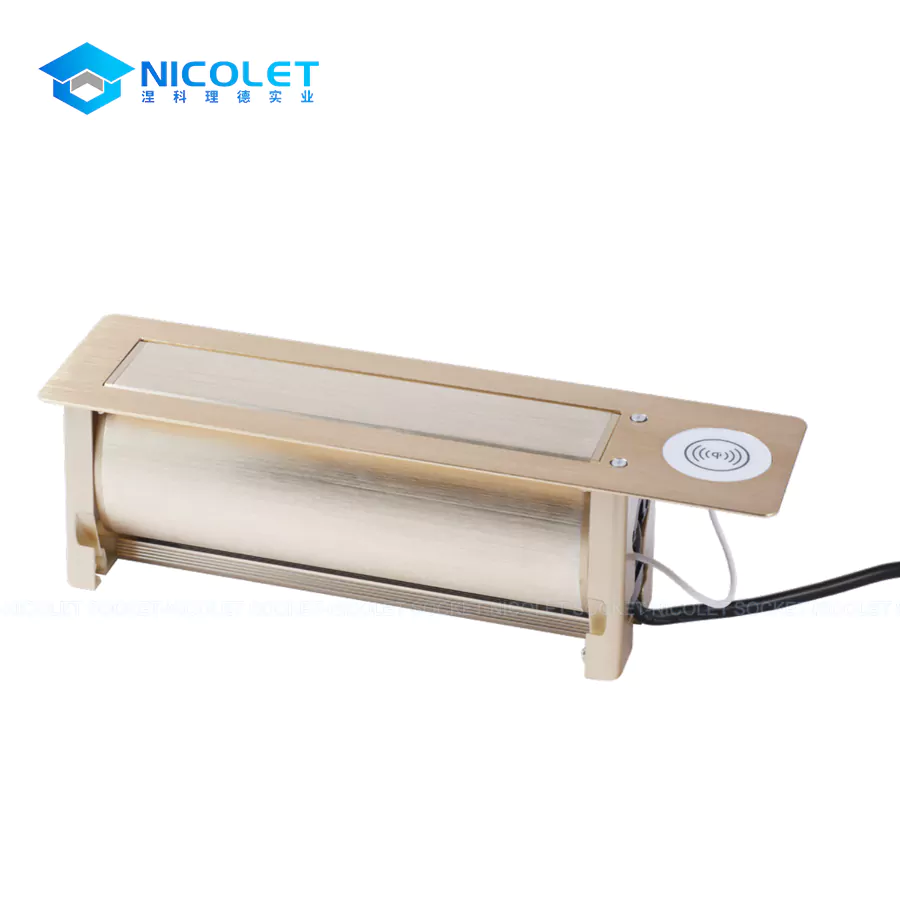

Automatic Rotating Table Socket with 15W Wireless Charger (NPR-603E)
The Nicolet Automatic Rotating Table Socket is a high-capacity automatic rotating table socket built for executive boardrooms, large conference tables, and multimedia workstations. Designed with a smooth 180° touch-activated motorized mechanism and a top-mounted 15W wireless charging pad, it conceals connectivity ports flush beneath the tabletop when not in use. Factory-customizable with global AC sockets, USB-C fast charging, and pass-through AV connectors.
Key Features
-
Touch-Activated 180° Motorized Rotation: Smooth, automated rotation exposes or conceals outlets at the touch of a button, keeping desk surfaces clean.
-
Anti-Pinch Safety Sensor: Built-in photo-electric detector stops rotation automatically if cables or fingers are obstructing the socket bay.
-
Top-Integrated 15W Wireless Charging: Provides continuous wireless charging for Qi-enabled devices even when the outlet bay is rotated closed.
-
High-Power USB Fast Charging: Optional integrated USB PD modules (up to 65W) power laptops, tablets, and smartphones directly without external adapters.
-
Durable Aluminum Construction: Crafted with premium anodized aluminum housing for high mechanical durability and commercial-grade aesthetics.
-
Modular Interface Customization: Supports international AC sockets (US, UK, EU, AU, Universal) and low-voltage pass-through ports (HDMI, RJ45, USB-C).
Product Specifications
| Specification Feature | Details | Source Status |
| Model | NPR-603E (NPR-600E Series) |
Confirmed |
| Operation Type | Touch-Activated Motorized 180° Rotary |
Confirmed |
| Housing Material | Anodized Aluminum Alloy + Flame-Retardant ABS |
Confirmed |
| Top Wireless Charger | 15W Qi-Standard Fast Wireless Pad |
Confirmed |
| Fast Charge Support | Optional 20W / 65W Type-C Power Delivery (PD) |
Confirmed |
| Safety Features | Anti-Pinch Photo-Electric Sensor Protection |
Confirmed |
| Available Outlets | Universal, US, UK, EU (Schuko), FR, AU, IT, BR, IN, ZA, CN |
Confirmed |
| Data/AV Connectors | RJ45 CAT6, HDMI, USB-A Data, 3.5mm Audio, VGA |
Confirmed |
| Standard Finishes | Brushed Silver, Brushed Black, Matte Black, Matte White |
Confirmed |
| Certifications | CE, UL, SAA, VDE, CCC (Module Level) |
Confirmed |
| Mounting Type | In-Desk Flush Cutout Mount | Reasonable Inference |
| Cutout Dimensions | Provided upon modular layout selection | Unknown |
Model Comparison
| Feature / Model | NPR-603E (Motorized Rotary) | NPR-601E / NPR-602E | NPR-500H Series (Manual Rotary) |
| Operation |
Touch Motorized 180° Rotation |
Touch Motorized 180° Rotation |
Manual Hand Flip / Rotate |
| Capacity / Profile | High-Capacity Extended Panel | Compact / Mid-Size Panel |
Standard / Custom Profile |
| Integrated Wireless Charger |
15W Pad (Top) |
15W Pad (Top) |
Optional / Model Dependent |
| Anti-Pinch Sensor |
Yes (Photo-Electric) |
Yes (Photo-Electric) |
N/A (Manual) |
| Primary Material |
Anodized Aluminum Alloy |
Anodized Aluminum Alloy |
Aluminum / Cold-Rolled Steel |
| Best Application | Large Boardrooms & AV Tables | Executive Desks & Small Tables | Training Tables & Workstations |
Applications
-
Executive Boardrooms: Provides centralized multi-user AC power and AV pass-through ports for large conference tables during corporate meetings.
-
Large Conference Rooms: Enables seamless multimedia connectivity (HDMI, RJ45, USB-C) for presentations and collaborative conferences.
-
Luxury Hospitality Centers: Delivers sleek, automated power access in high-end executive lounges and hotel boardroom facilities.
OEM/ODM / Customization
Nicolet provides full OEM/ODM production for the NPR-603E Automatic Rotating Table Socket. As a dedicated manufacturer, we support custom AC socket arrangements (US, UK, EU, AU, Universal), tailored AV/data port layouts (HDMI, RJ45, USB-C), customized cable harness lengths, and surface anodization to match your furniture designs.
FAQ
-
Q1: How does the NPR-603E differ from the NPR-601E and NPR-602E?
A: All models belong to the NPR-600E motorized series and feature touch operation, photo-electric anti-pinch protection, and 15W top wireless charging. The Automatic Rotating Table Socket utilizes a larger housing frame designed for higher outlet density and extra AV media ports on conference tables.
-
Q2: How does the anti-pinch safety mechanism work on the NPR-603E?
A: The unit uses an integrated photo-electric sensor. If an object, finger, or plugged-in cable blocks the housing during rotation, the motor immediately halts to prevent damage or injury.
-
Q3: Can the 15W wireless charger be used when the rotary outlets are closed?
A: Yes. The 15W wireless charging pad is built into the top face of the unit, allowing continuous smartphone charging regardless of whether the power socket bay is rotated open or closed.
-
Q4: Can we order custom combinations of USB charging and network modules?
A: Absolutely. As an OEM/ODM manufacturer, we allow buyers to specify the exact combination of power outlets, high-power USB-C PD modules (up to 65W), RJ45 CAT6, and HDMI ports needed.
CTA
Looking for High-Capacity Motorized Table Power Solutions for Your Furniture Line?
Contact Nicolet today to request a factory-direct quote, request CAD cutout drawings, or configure custom OEM/ODM socket specifications for the Automatic Rotating Table Socket.
