| Parameter | Specifications & Standards |
|---|---|
| Product Type | Motorized Pop-Up Desk Sockets / Pop-Up Desktop Power Socket |
| Dimensions & Cut-out size | 320 mm (Closed Height)*120 mm 425 mm (Raised Height)*120 mm; Φ105 mm |
| Material & Finish | Aluminium Alloy+Flame-Retardant PC+Tempered Glass; Black / Grey / White |
| Input Voltage | AC 250V～, 13A, 50/60Hz |
| Available Sockets & Module | UK / US / AU / Schuko / CN / IN / TH / ZA / BR / IT / Plug Power Cord, Pure Copper |
| Certifications | CCC, CE, UL, ETL, SAA, VDE, and DEKRA Certified |

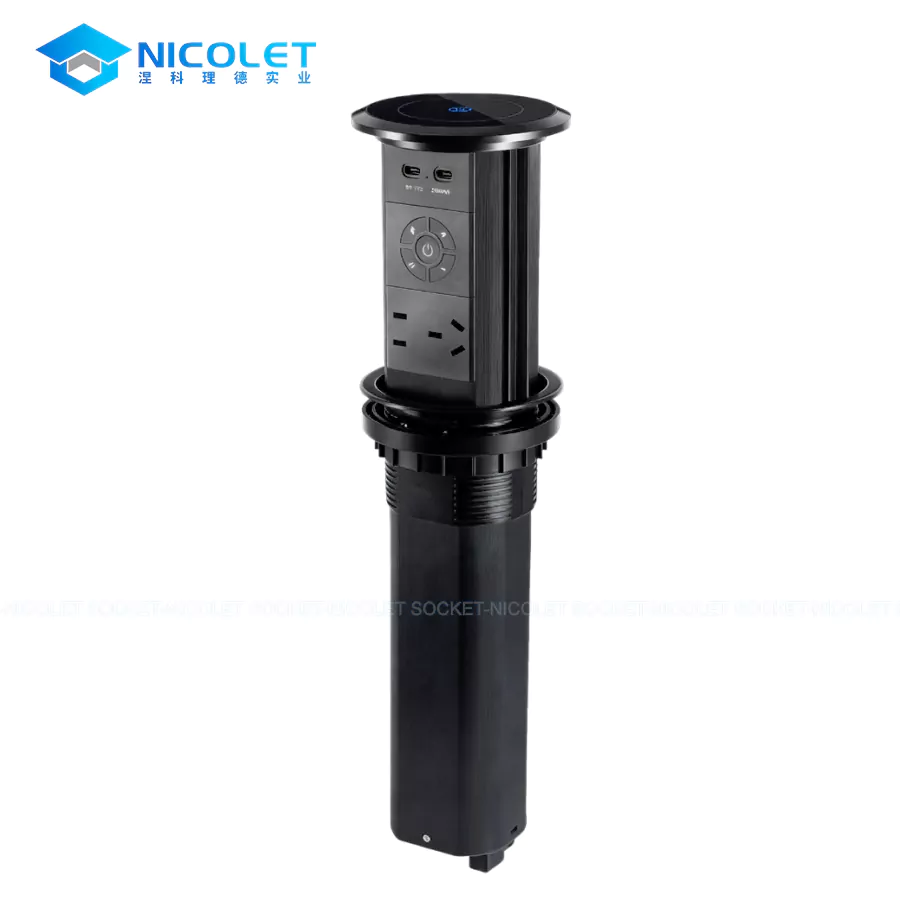

NPR-1051 Motorized Pop-Up Desktop Power Hub with Bluetooth Speaker & Wireless Charger
The Nicolet Pop-Up Desktop Power Socket is an advanced, commercial-grade motorized pop-up desktop power hub engineered for modern executive desks, conference rooms, and collaborative workstations. Featuring an automatic motorized raising/lowering mechanism, 4 Chinese standard AC sockets, 4 USB fast charging ports (2 USB-A + 2 USB-C PD 20W), a 15W Qi wireless charging top, and an integrated Bluetooth speaker, the Pop-Up Desktop Power Socket provides complete power, audio, and fast charging connectivity in a sleek vertical column.
Key Features
-
Motorized Automatic Pop-Up & Anti-Pinch: Smooth motorized column raises and lowers at a touch, equipped with intelligent anti-pinch safety sensor protection and an IP22 splash-resistant rating.
-
High-Power USB & Qi Wireless Charging: Built-in 15W top-mounted Qi wireless charger paired with a 4-port USB fast charging module (2× USB-A + 2× USB-C PD 20W) for multi-device charging.
-

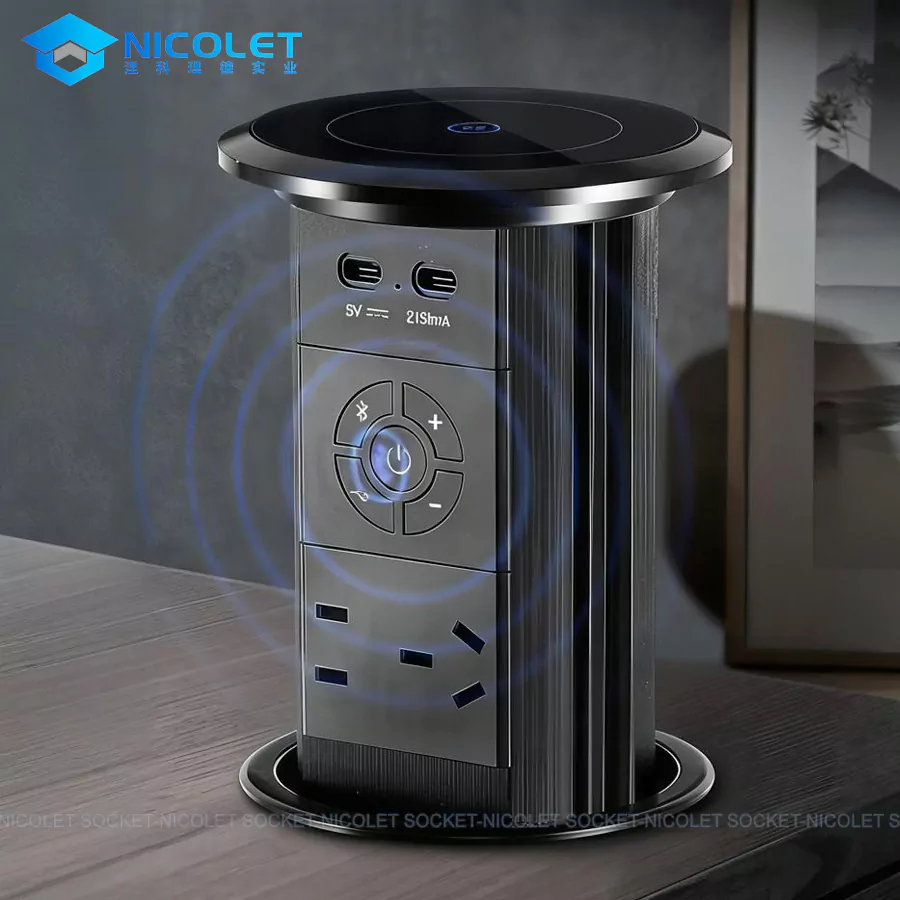

Integrated Bluetooth Speaker: Features an embedded high-quality Bluetooth audio system offering instant pairing and clear sound output for conference calls and media playback.
-
4-Socket Chinese Power Column: Integrates 4 Chinese standard AC outlets (AC 250V~ 13A Max 2300W) arranged in a 360-degree vertical configuration for easy multi-user access.
-
Premium Materials & Sleek Aesthetic: Crafted from anodized extruded aluminum alloy, flame-retardant PC, and a toughened tempered glass top panel.
Specifications
| Parameter | Specification |
| Model No. |
NPR-1051 Pop-Up Desktop Power Socket |
| Closed Height × Diameter |
320 × 120 mm |
| Raised Height × Diameter |
425 × 120 mm |
| Cut-out Size | Φ105 mm |
| Material |
Aluminium Alloy + Flame-Retardant PC + Tempered Glass |
| AC Sockets |
4× CN Sockets (AC 250V~, 13A, 50/60Hz, Max 2300W) |
| USB Fast Charger |
2× USB-A + 2× USB-C (PD 20W) |
| Wireless Charger |
Qi Wireless Charging (Max 15W) |
| Audio System |
Integrated Bluetooth Speaker |
| Safety Protection |
IP22 Rated, Anti-Pinch Sensor |
| Available Finishes |
Black / Grey / White |
| Power Cable Included |
1.5 m CN Plug Power Cord (3G 1.0 mm² Pure Copper) |
| Safety Certifications |
CE, RoHS, CCC compliant components |
Applications
-
Executive & Leadership Workstations: Adds premium motorized power, wireless charging, and audio capabilities to executive office desks.
-
Smart Meeting & Boardroom Tables: Provides clean, hidden power access and integrated audio for seamless teleconferencing and screen sharing.
-
Collaborative & Innovation Hubs: Equips modern co-working lounges and smart office tables with multi-device fast charging.
-
Luxury Hospitality & VIP Lounges: Delivers sophisticated in-desk power and audio functionality in hotel business centers and executive lounges.
OEM / ODM Customization Options
Nicolet provides full turnkey OEM/ODM customization for the Pop-Up Desktop Power Socket series. We support custom AC socket module swaps (UK, US, Schuko, Universal, AU, FR), customized top glass logo printing, tailored USB fast-charging outputs, specialized anodized aluminum finishes, and custom power cable lengths to align with your brand requirements.
FAQ
Q1: What is the primary difference between NPR-1050 and NPR-1051?
Both NPR-1050 and NPR-1051 belong to Nicolet’s premium motorized pop-up series sharing identical dimensions, 4 CN sockets, 15W Qi wireless charging, and Bluetooth speaker integration. They feature slight variations in internal power module layouts or secondary aesthetic accenting.
Q2: How does the anti-pinch safety mechanism function?
The Pop-Up Desktop Power Socket features an intelligent safety sensor system. If an obstruction or finger blocks the motorized column while descending, the mechanism automatically pauses and reverses upward to prevent injury or equipment damage.
Q3: What desktop cutout size is required for installation?

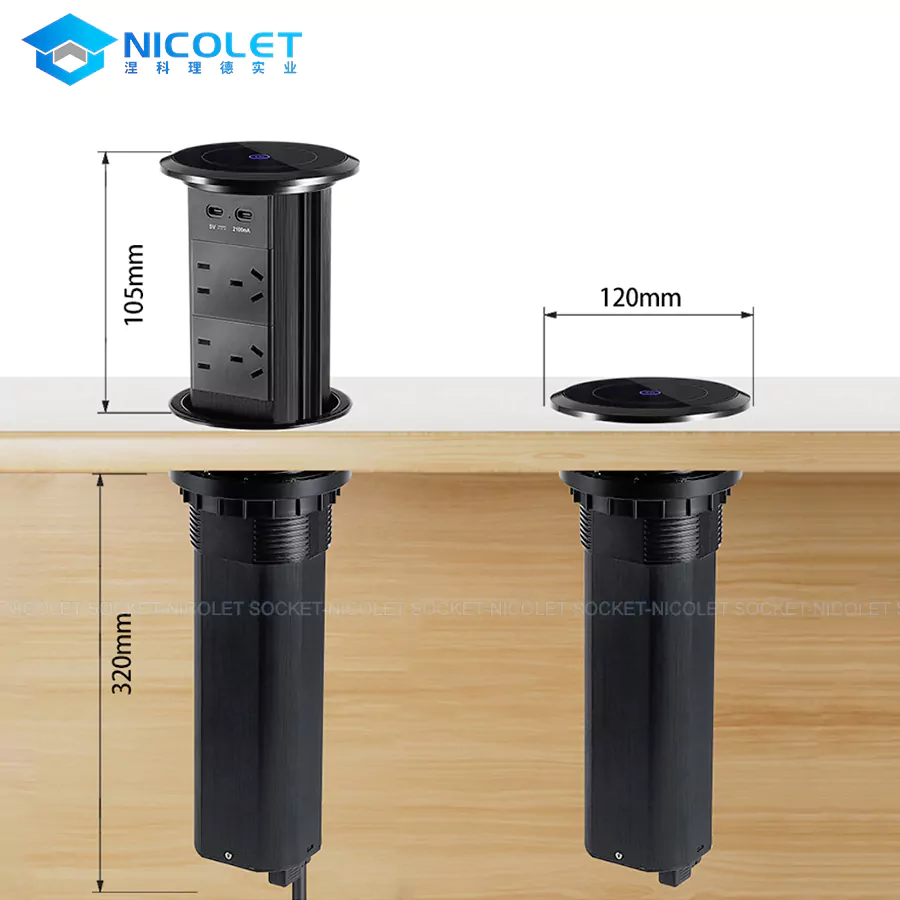

The Pop-Up Desktop Power Socket requires a standard Φ105 mm tabletop cutout with a minimum under-desk clearance depth of 320 mm. It is securely fixed into place from beneath using a threaded ring mechanism.
Q4: Is the top Qi wireless charging pad functional when the column is retracted?
Yes, the 15W Qi wireless charger embedded in the top tempered glass panel remains fully operational even when the motorized column is completely closed flush with the desktop.
