| Parameter | Specification |
|---|---|
| Model Number | NMA-07 Monitor Arm Supplier China |
| Supported Monitor Size | 19″ – 32″ |
| Weight Capacity | 2 – 9 kg (4.4 – 19.8 lbs) |
| Height Adjustment (Lift) | 260 mm |
| Tilt Angle | +90° ~ -35° |
| Swivel Angle | ±90° |
| Pivot (Rotation) | ±90° |
| VESA Compatibility | 75×75 mm, 100×100 mm |
| Mounting Options | C-Clamp & Grommet Mount (Desk Thickness 15-80 mm) |
| Cable Management | Integrated Concealed Routing Channel |
| Finish / Materials | Matte Black / High-Grade Aluminum & Heavy-Duty Steel |
| Application Scenarios | Corporate Offices, Financial Trading Floors, Executive Desks, Software Engineering Hubs, Home Offices |

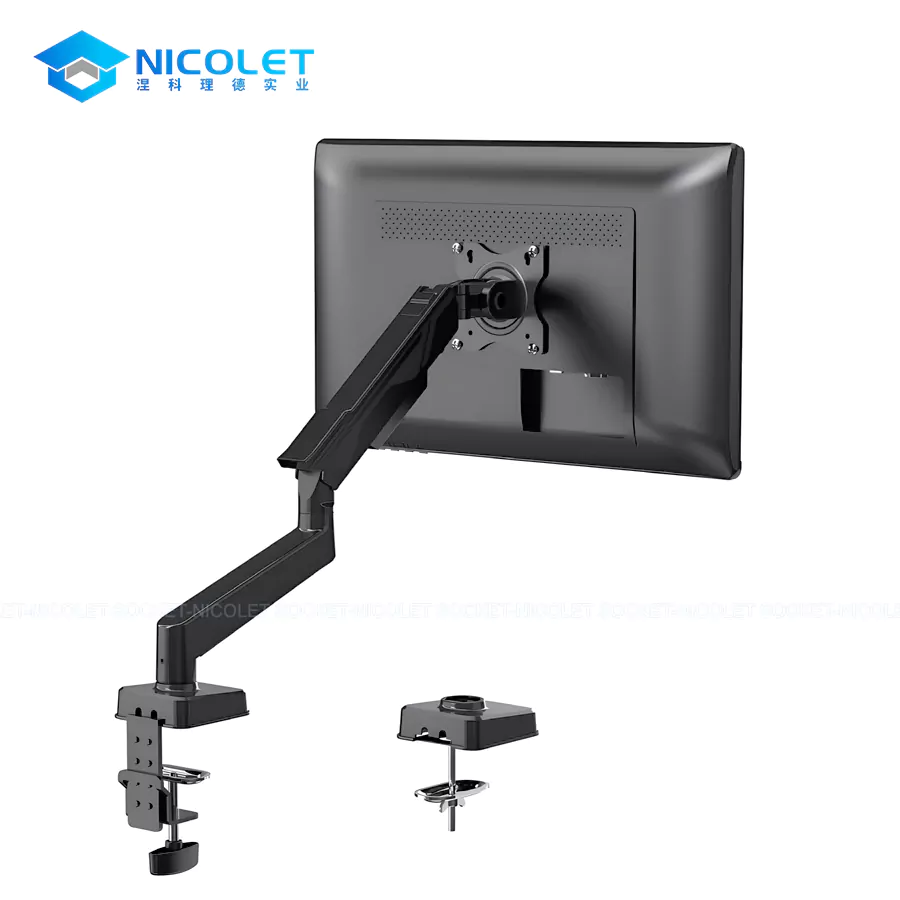

NMA-07 Mechanical Spring Monitor Arm Supplier China – Heavy-Duty Ergonomic Desk Mount for Professional Workstations
Hero Bullet Points
-
Constant-Force Mechanical Spring: Monitor Arm Supplier China Delivers effortless, counterbalanced height positioning and free-stop stability without screen drift.
-
Heavy-Duty Screen Support: Engineered for larger displays (19”-32”) weighing 2–9 kg, fully compatible with 75 x 75 mm and 100 x 100 mm VESA patterns.
-
Full-Motion Dynamic Ergonomics: Monitor Arm Supplier China Features +90°/-35° tilt, 90° swivel, and 90° pivot rotation for fluid landscape-to-portrait orientation shifts.
-
Integrated Cable Management & Dual Mount Base: Conceals power and video cables while offering versatile C-clamp and grommet mounting hardware.
Overview & Features
Precision Counterbalance with Constant-Force Technology
Designed for demanding modern workspaces, the Monitor Arm Supplier China utilizes an advanced mechanical spring system that delivers consistent tension throughout its 260 mm height elevation range. Users can re-position their displays effortlessly with a touch and hold any viewing height securely, preventing neck strain and supporting healthy daily posture.
Multi-Angle Flexibility for Seamless Collaboration
Whether analyzing extensive code, presenting concepts to colleagues, or managing detailed financial data, the Monitor Arm Supplier China provides full-range articulation. With +90°/-35° tilt, 90° swivel, and complete 360° rotation, it adapts instantly to any commercial task or collaborative seating arrangement.
Space-Optimized Design & Hidden Cable Routing
Keep commercial desktops clean, organized, and professional. The Monitor Arm Supplier China incorporates integrated cable channels along the arm to hide power cords and signal cables. Supplied with heavy-duty C-clamp and grommet installation kits, it secures seamlessly onto various desk thicknesses, maximizing usable workspace.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model Number | NMA-07 Monitor Arm Supplier China |
| Supported Monitor Size | 19″ – 32″ |
| Weight Capacity | 2 – 9 kg (4.4 – 19.8 lbs) |
| Height Adjustment (Lift) | 260 mm |
| Tilt Angle | +90° ~ -35° |
| Swivel Angle | ±90° |
| Pivot (Rotation) | ±90° |
| VESA Compatibility | 75×75 mm, 100×100 mm |
| Mounting Options | C-Clamp & Grommet Mount (Desk Thickness 15-80 mm) |
| Cable Management | Integrated Concealed Routing Channel |
| Finish / Materials | Matte Black / High-Grade Aluminum & Heavy-Duty Steel |
| Application Scenarios | Corporate Offices, Financial Trading Floors, Executive Desks, Software Engineering Hubs, Home Offices |
